Custom Data Variables

Custom Data Variables allow you to inject dynamic, user-defined data into your prompts at runtime. This feature enables you to create flexible, reusable prompts that can adapt to different contexts without modifying the prompt text itself.

Overview

Custom data variables use the syntax {{custom_data.key}} and support dot notation for accessing nested values. This feature is available in both:

• Prompt Studio (Sandbox): For testing and development with a visual JSON editor
• API Deployment: For production use where custom data is passed via the API request

Use Cases

Custom data variables are ideal for:

• Document context: Passing document-specific information like policy numbers, account IDs, or customer names
• Processing parameters: Injecting thresholds, date ranges, or configuration values
• Multi-tenant scenarios: Customizing extraction based on client-specific requirements
• Dynamic validation: Passing expected values to compare against extracted data

Syntax

Basic Access

{{custom_data.key}}

Nested Object Access

{{custom_data.user.name}}
{{custom_data.settings.threshold}}
{{custom_data.company.address.city}}

Using Custom Data in Prompt Studio

Prompt Studio provides a visual interface to define and test custom data variables before deploying to production.

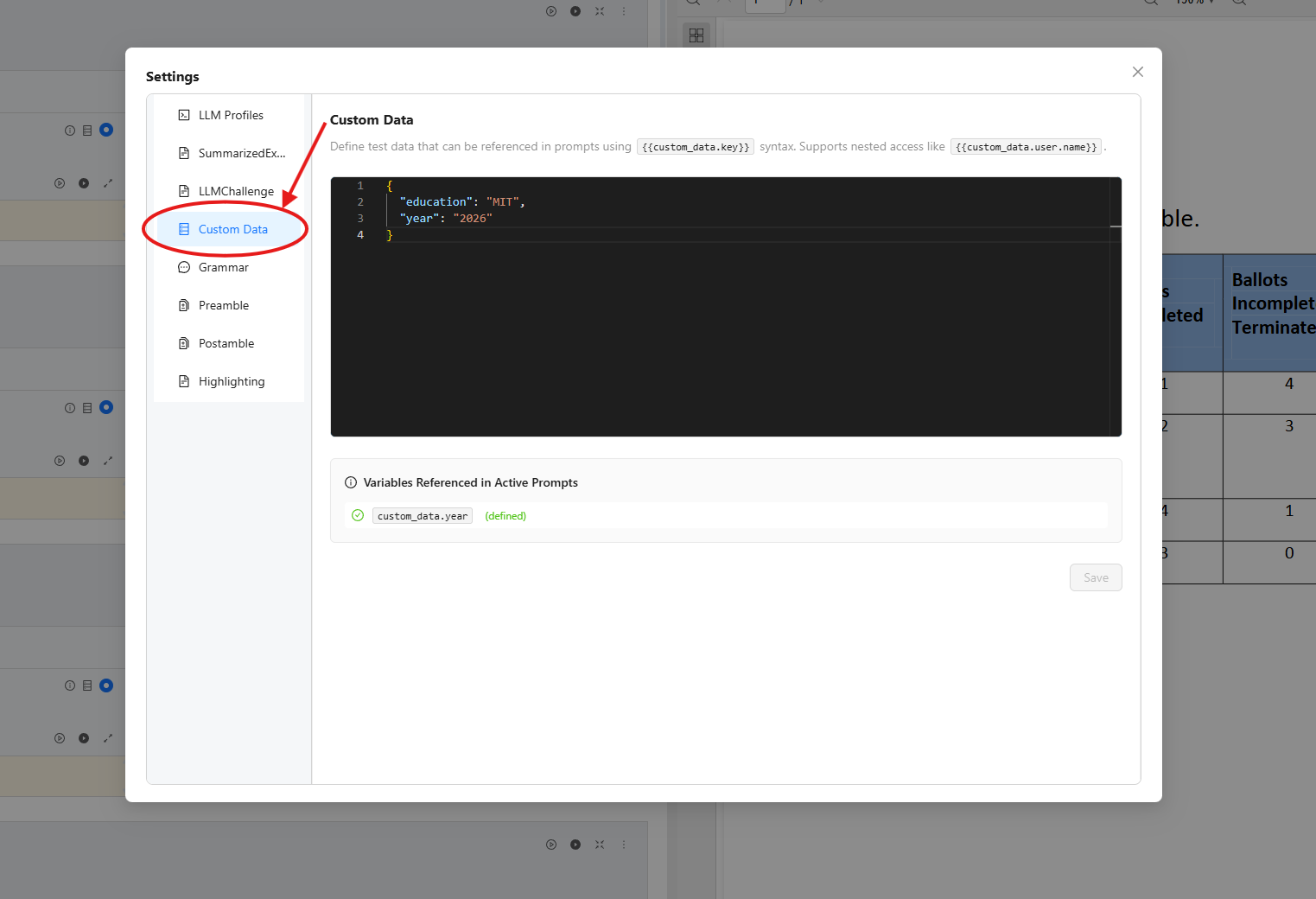

Accessing Custom Data Settings

1. Open your Prompt Studio project
2. Click the Settings icon (gear) in the toolbar
3. Select Custom Data from the menu

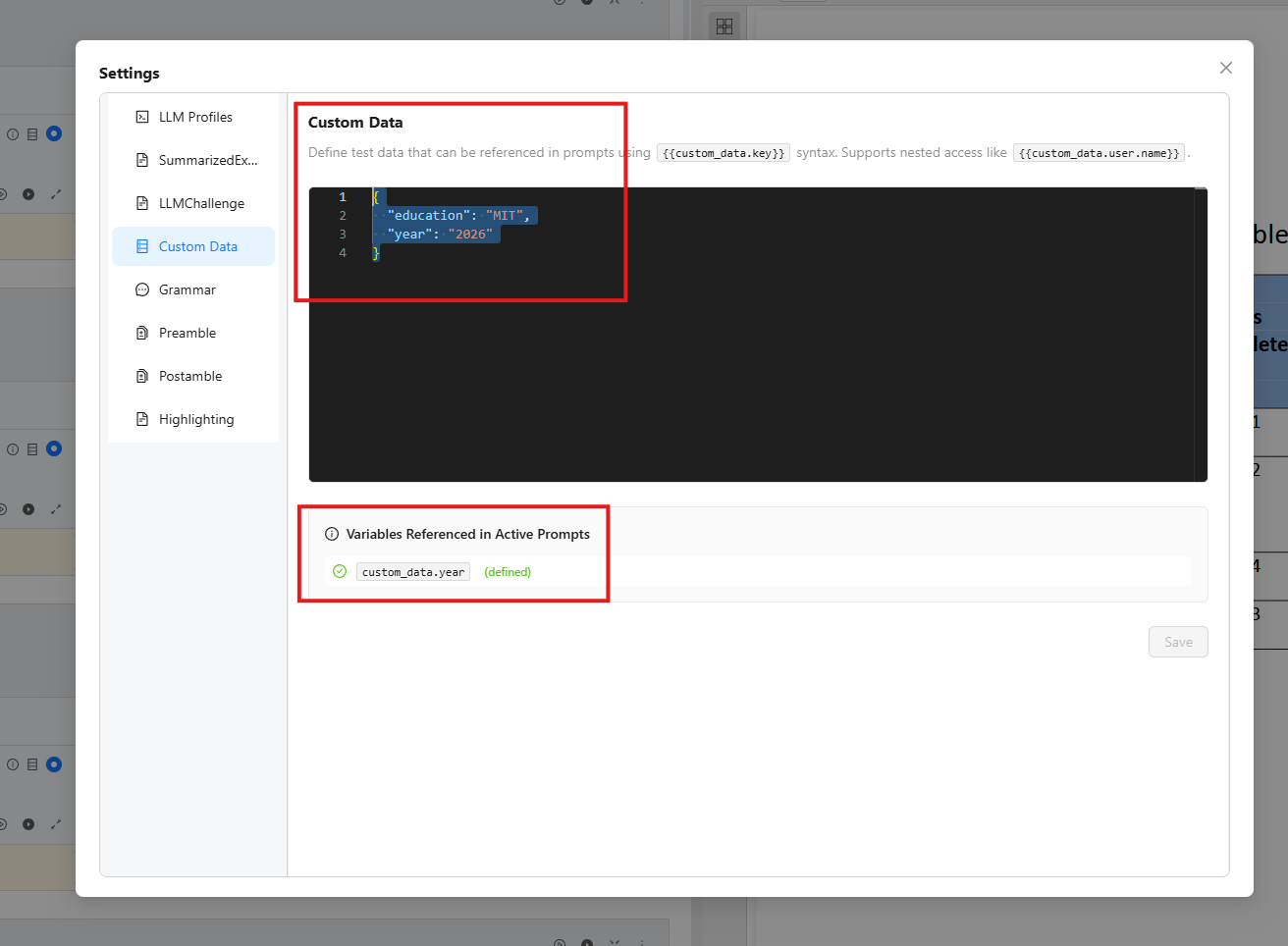

Defining Custom Data

The Custom Data settings page provides:

1. JSON Editor: A Monaco-based editor for defining your custom data as JSON
2. Variables Preview: Shows which {{custom_data.xyz}} variables are used in your active prompts
3. Validation Warnings: Alerts you when referenced variables are not defined in your JSON

Example Configuration

Define your custom data as a JSON object:

{
  "customer_name": "Acme Corporation",
  "policy_number": "POL-2024-001234",
  "effective_date": "2024-01-01",
  "thresholds": {
    "min_amount": 1000,
    "max_amount": 50000
  },
  "contact": {
    "name": "John Smith",
    "email": "john@acme.com"
  }
}

Using Variables in Prompts

Once defined, reference your custom data in any prompt:

Extract the premium amount for customer {{custom_data.customer_name}}
with policy number {{custom_data.policy_number}}.

The amount should be between {{custom_data.thresholds.min_amount}}
and {{custom_data.thresholds.max_amount}}.

Testing Your Configuration

1. Define your custom data JSON in the settings
2. Create or edit a prompt using {{custom_data.key}} syntax
3. Run the prompt to verify variable replacement
4. Check the Variables Preview panel to ensure all variables are defined

tip

The Variables Preview panel automatically detects all {{custom_data.xyz}} variables used in your active prompts. Variables shown with a warning icon indicate they are referenced but not defined in your JSON.

Using Custom Data in API Deployment

When you deploy your Prompt Studio project as an API, custom data is passed as a parameter in the API request.

API Request Parameter

Include the custom_data parameter in your API request:

Parameter	Type	Required	Description
custom_data	object	No	JSON object for variable replacement in prompts

Example API Request

curl -X POST "https://us-central.unstract.com/deployment/api/<org_id>/<api_name>/" \
  -H "Authorization: Bearer <YOUR_API_KEY>" \
  -H "Content-Type: multipart/form-data" \
  -F "files=@document.pdf" \
  -F 'custom_data={"customer_name": "Acme Corp", "policy_number": "POL-001"}'

Python Example

import requests

url = "https://us-central.unstract.com/deployment/api/<org_id>/<api_name>/"
headers = {"Authorization": "Bearer <YOUR_API_KEY>"}

files = {"files": open("document.pdf", "rb")}
data = {
    "custom_data": '{"customer_name": "Acme Corp", "policy_number": "POL-001"}'
}

response = requests.post(url, headers=headers, files=files, data=data)
print(response.json())

For complete API documentation, see Execution API.

Error Handling

If a prompt references a custom data variable that is not defined, you will receive a descriptive error message with guidance on how to fix it.

In Prompt Studio:

Custom data error for variable '{{custom_data.missing_key}}':
Key 'missing_key' not found in custom data.
Please define this key in Prompt Studio Settings > Custom Data.

In API Deployment:

Custom data error for variable '{{custom_data.missing_key}}':
Key 'missing_key' not found in custom data.
Please include this key in the 'custom_data' field of your API request.

Troubleshooting

Issue	Solution
Variable not replaced	Ensure the variable name matches exactly (case-sensitive)
Nested value not found	Verify the full path exists in your JSON (e.g., user.name requires {"user": {"name": "..."}})
Invalid JSON	Use the JSON editor's syntax highlighting to identify and fix JSON errors
Variable not detected	Ensure correct syntax: {{custom_data.key}} with double curly braces

Best Practices

1. Test in Prompt Studio first: Always validate your custom data configuration in the Prompt Studio sandbox before deploying to production

2. Use descriptive key names: Choose clear, self-documenting key names like customer_name instead of cn

3. Document your schema: Maintain documentation of expected custom data fields for API consumers

4. Handle missing data gracefully: Design prompts that work even if optional custom data fields are not provided

5. Validate in your application: Before calling the API, validate that required custom data fields are present

Relationship to Other Variable Types

Custom data variables work alongside other variable types in Unstract:

Variable Type	Syntax	Description
Custom Data	{{custom_data.key}}	User-provided data from settings or API
Prompt Chaining	{{prompt_key}}	Output from another prompt in the same project
Dynamic Variables	{{[prompt_key] url}}	Post-processed prompt output via webhook

For more information on prompt chaining, see Prompt Chaining.
